WD 71 Thermal Door & Window Systems

Specially designed with the aim of providing safety and comfort in buildings through a high-quality system, Ares Architectural Systems’ “WD 71 Thermal Insulated Door and Window Series” is confidently preferred in projects thanks to its excellent thermal, water and acoustic insulation performance, durability under challenging conditions, and cost-efficient solutions.

Developed with a 3-chamber thermal barrier system for maximum thermal efficiency and a specially designed EPDM gasket structure, the Ares WD 71 Series enhances comfort in living spaces to the highest level and offers attractive alternatives for prestigious architectural projects.

Product Features

• 71 mm frame section depth
• Sealing with 3-level EPDM gaskets
• Glass thickness options ranging from 20 to 50 mm
• Compatible with all Euro-type accessories
• Electrostatic powder-coated or anodized surface finish
• 34 mm PA thermal barrier

Advantages

• High performance in acoustic, water, air and thermal insulation
• A wide range of architectural detail alternatives
• Lightweight structure and easy fabrication
• Aesthetic interior and exterior appearance
• Adaptable to all opening types

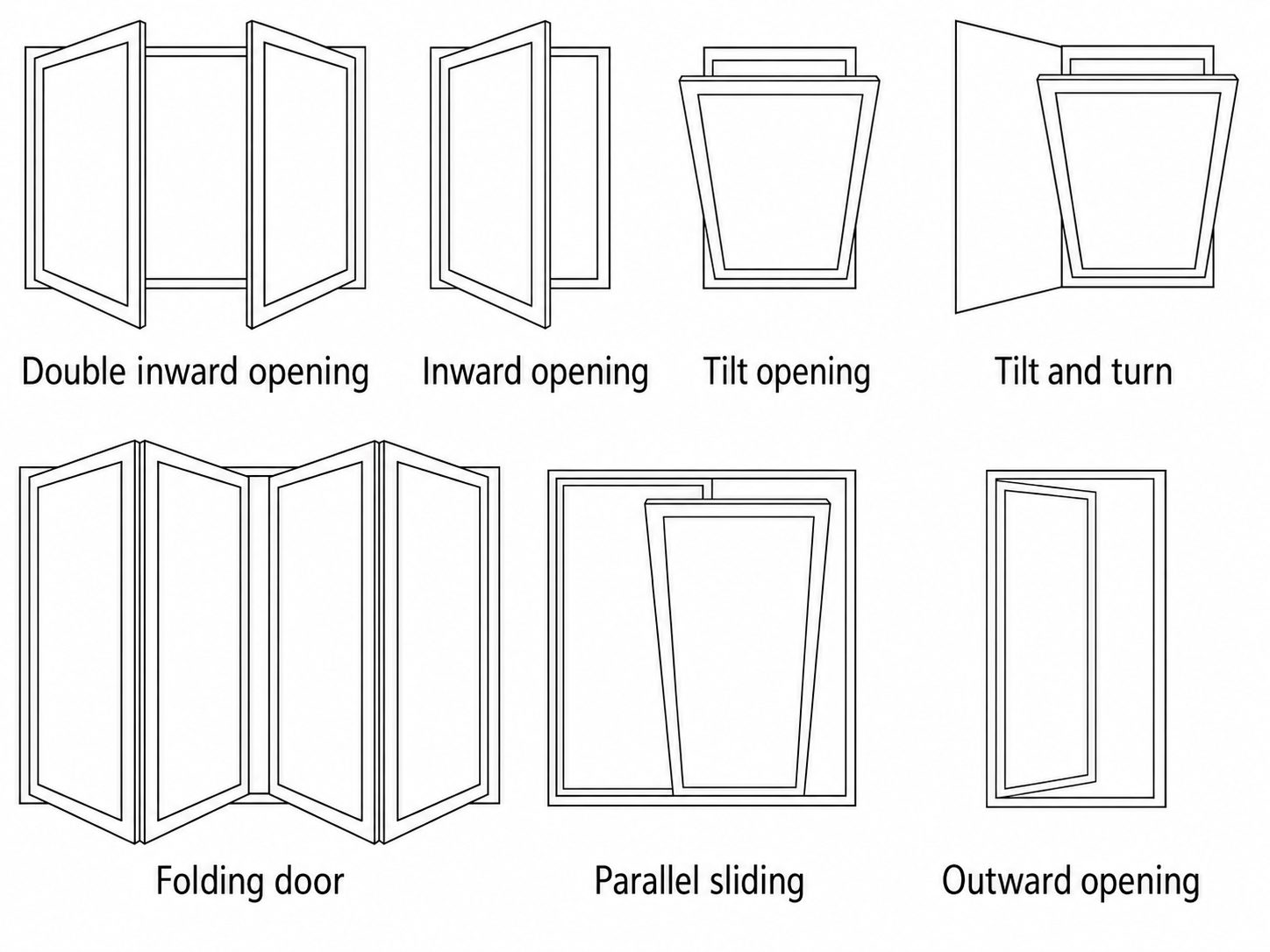

Opening Types

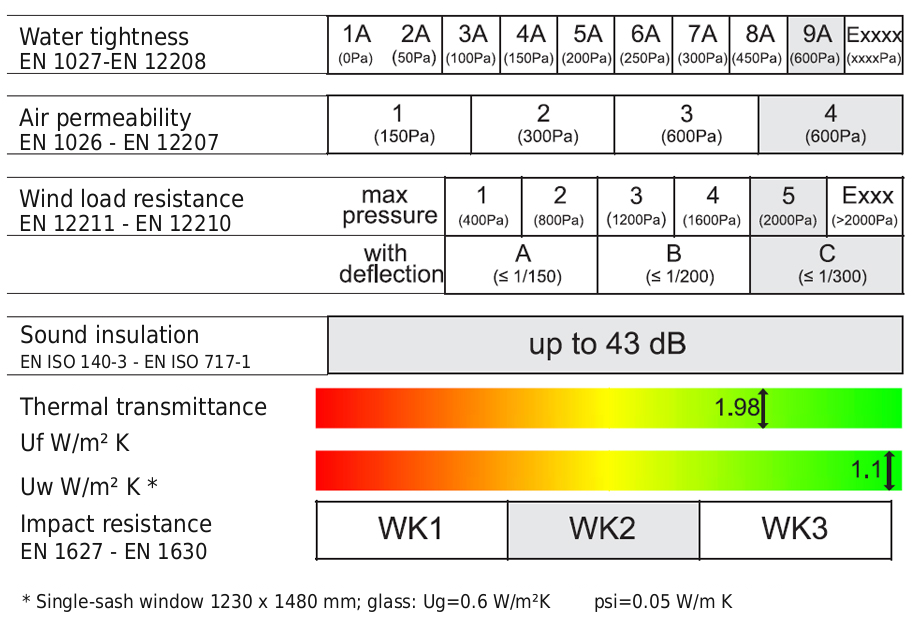

Performance
